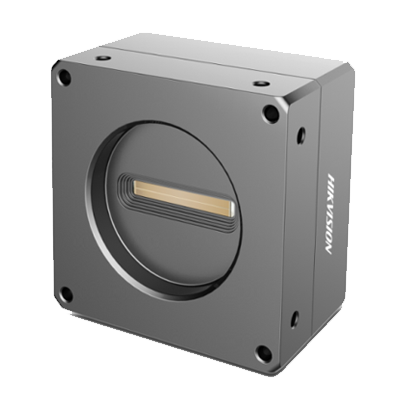

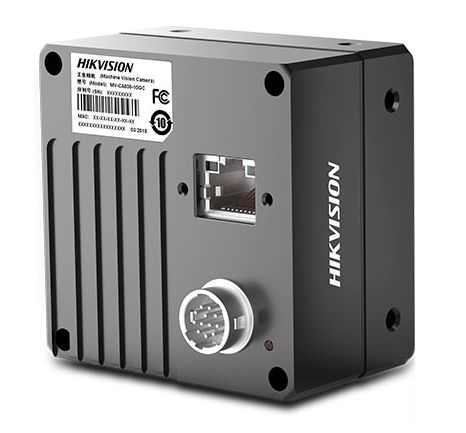

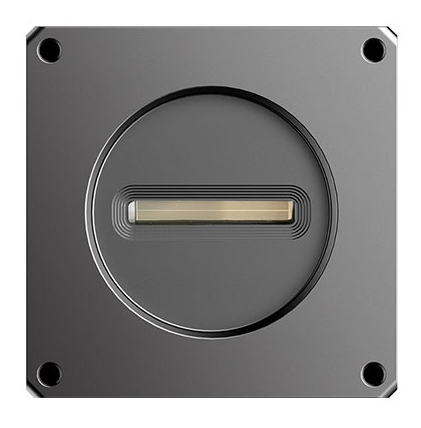

2048 Pixels GigE Line Scan Industrial Camera
| Model | MV-CL020-40GM |
| 2048 Pixels Line Scan GigE Camera | |
| | Camera | |
| Sensor | Awaiba DR2K7 1/2” Global Shutter CMOS |
| Resolution | 2048*1 |
| Pixel Size | 7 μm |
| Line Frequency | 1Hz-51kHz |
| A/D Conversion Bits | 12 bits |
| Image Data Bits | 8, 10, 12 bits |
| Shutter Mode | Support Fixed Exposure Time Mode, PWM Mode |
| Dynamic Range | >60dB |
| SNR | >40dB |
| Image Processing | Gamma, lookup table |
| Gamma Correction | 0 to 4.00, programmable lookup table |
| Binning | 1/2/3/4binning |
| ROI Mode | Support 1 ROI |
| Mirror Image | Support horizontal mirroring output |
| Dark Field Correction | Yes |
| Bright Field Correction | Yes |
| Gain Control | Support manual gain |
| Gain Range | 0dB-11.7dB |
| Minimum Exposure Time | 2μs |
| Data Interface | Gigabit Ethernet |
| Transmission Rate | 100/1000Mbits |
| GPIO | 12-pin Hirose Connecter： 2 RS422 Inputs， 1 Single-end Input， 2 RS422 Output |
| External Trigger Mode | Line trigger and frame trigger |
| Synchronous Signal Mode | External trigger or soft trigger |
| Image Buffer | 128MB |
| Reference Storage Area | 4 groups of parameter storage area, including user setting parameters, and dark field/bright field correction parameters |
| Data Format | Mono 8/10/12/10P/12P |
| | General | |
| Power Supply and Consumption | <4W@12VDC, voltage range of 5~15V, and PoE supported |
| Temperature | Operating temperature 0~50℃, storage temperature -30~80℃ |
| Dimensions | 62mm*62mm*37.5mm |
| Weight | 170g |
| Lens Mount | M42*1.0, BFL 12mmConnect F-Mount, C-Mount and other lens via an adapter |
| Software | MVS or third-party software that supports GigE Vision protocol |
| Operating System | Windows XP/7/8 32/64bits |
| Compatibility | GigE Vision V1.2 |
| Certification | CE, FCC, RoHS |
